Propeller Warning Labels seen at the 2014 Tulsa Boat Show: Part 2

This post is Part 2 of our two part coverage of propeller warning labels at 2014 show.

We tried to group most of the stand alone propeller warnings on this page. A few of them are on page 1 as part of our coverage of clusters of warnings.


Two propeller warnings. 2014 Tulsa Boat Show.

Two warnings. 2014 Tulsa Boat Show.

This pair of separate warnings labels was beside a carbon monoxide warning label.

The two warnings have borders, use the signal word “Warning” along with the alert symbol, and their text is centered.

The upper warning is in mixed upper and lower case, while the lower warning is in all caps making it harder to read.

If “Warning” is the correct signal word, they could both be grouped into a single warning label.

The propeller warning copies the text of NMMA’s helm propeller warning (image shown below), but divides the text up a little differently.

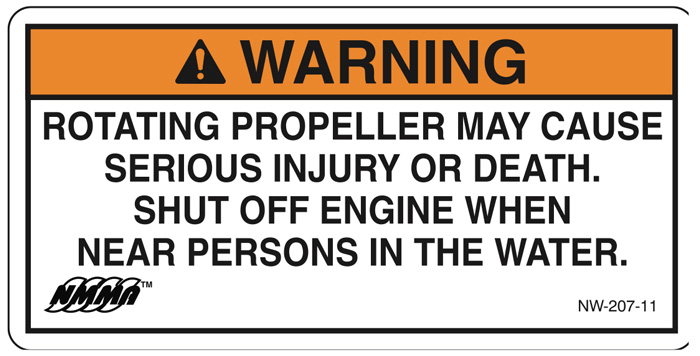

NMMA helm propeller warning

NMMA helm propeller warning

As mentioned above the 2014 propeller warning copies the NMMA warning, but they divide the bottom line up differently. While both helm warning examples have four lines of text and are in all caps, we find NMMA’s a little easier to read.


Propeller warning similar to NMMA warning. 2014 Tulsa Boat Show.

Propeller warning similar to NMMA warning. 2014 Tulsa Boat Show.

This warning appears to be a direct copy of the NMMA transom propeller warning, except for the NMMA logo and part number. NMMA’s version as photographed at the 2013 Tulsa Boat Show is shown below.

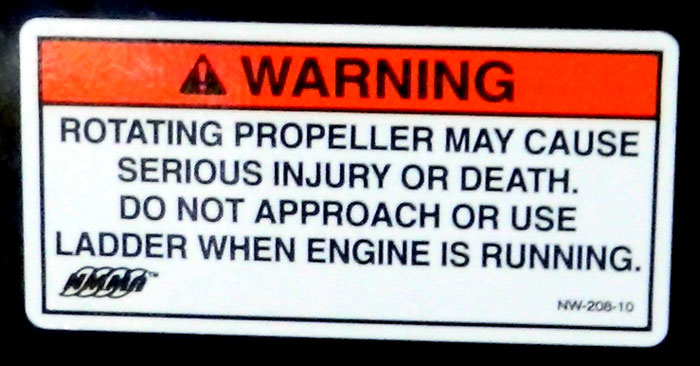

NMMA propeller warning at 2013 Tulsa Boat Show.

NMMA propeller warning at 2013 Tulsa Boat Show

If boat builders want to copy NMMA’s warning, we suggest they change the all caps text to mixed upper and lower case, and quit centering the text in the text panel. Those two changes would make it much easier to read.

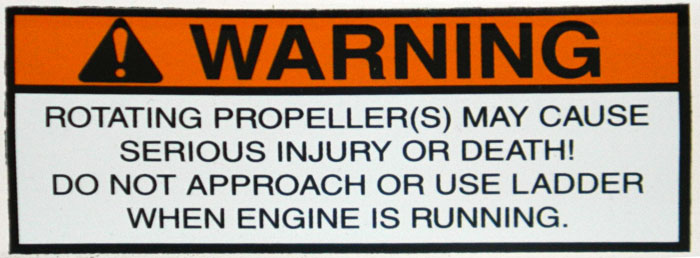

Propeller and ladder warning. 2014 Tulsa Boat Show.

Propeller and ladder warning. 2014 Tulsa Boat Show.

This warning copies much of NMMA’s transom warning text, and adds a possible plural to propeller, changing it to PROPELLER(S), and moves the word “ladder” up one line of text. Again, they stayed with NMMA’s all caps and centered text


Lack of Standardization Leads to Plethora of Boarding Ladder Warning Formats

The industry failing to generate some standard warnings and ABYC clinging to an extinct information report the industry claims is a standard (T-5), has resulted in the diversity seen below in ladder warnings over the last three years. If boat builders followed ANSI Z535.4, as you moved from one boat to the next, the warnings would be more similar and easier to interpret (more effective).

Ladder caution, 2014 Tulsa Boat Show.

Ladder caution, 2014 Tulsa Boat Show.

Propeller warning similar to NMMA warning. 2014 Tulsa Boat Show.

Propeller warning similar to NMMA warning. 2014 Tulsa Boat Show.

Propeller and ladder warning. 2014 Tulsa Boat Show.

Propeller and ladder warning. 2014 Tulsa Boat Show.

Multi warning, propeller warning. 2014 Tulsa Boat Show.

Multi warning, propeller warning. 2014 Tulsa Boat Show.

Ladder Danger warning. 2014 Tulsa Boat Show.

Ladder Danger warning. 2014 Tulsa Boat Show.

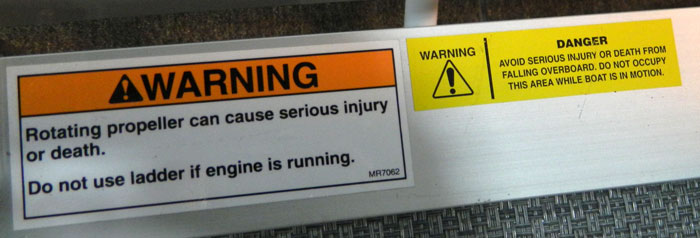

Propeller warning and yellow falling overboard warning

Propeller warning and yellow falling overboard warning

Propeller warning on pontoon boat at 2013 Tulsa Boat Show

Propeller warning on pontoon boat at 2013 Tulsa Boat Show

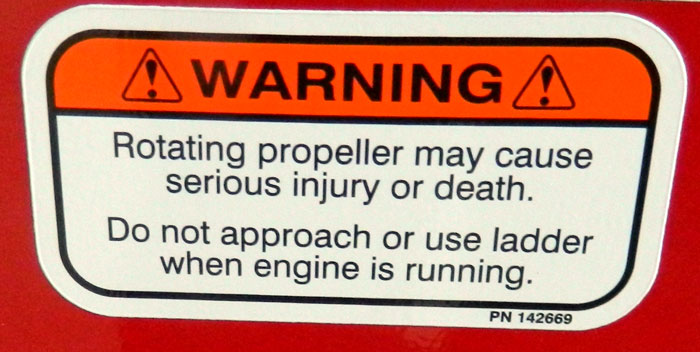

Propeller warning at 2013 Tulsa Boat Show

Propeller warning at 2013 Tulsa Boat Show

Propeller Warning Decal on pontoon boat - square

Propeller Warning Decal on pontoon boat – square

Propeller Warning Decal elliptical shape

Propeller Warning Decal elliptical shape

Propeller Warning Decal with rounded edges

Propeller Warning Decal with rounded edges

Propeller Warning Decal with large rounded edges

Propeller Warning Decal with large rounded edges

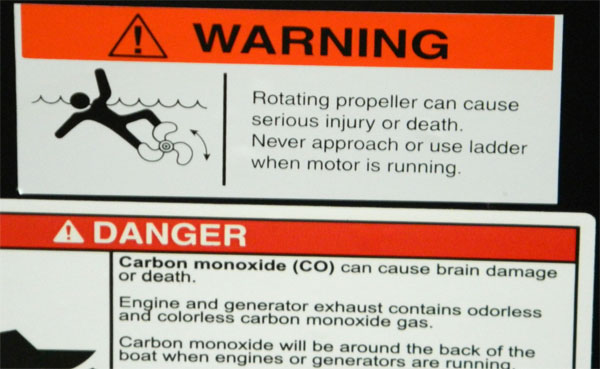

Warnings - Propeller and Carbon Monoxide

Warnings – Propeller and Carbon Monoxide

We whole heartedly support diversity, but lets have diversity in homing in on the best warning for particular vessels under the ANSI Z535.4 standard. The current diversity mostly results from using ancient warning labels and poor practices allowed to continue to exist under ABYC T-5.


    Return to Part 1 of 2014 Propeller Warnings


Comments

  1. Looking to purchase square warning label rotating propeller can cause serious injury or death do not use ladder if engine is running.Is this something you can help me with.please let me know.thanks

    • Boat manufacturers typically furnish /sell replacement labels if they become damaged.

      Several label firms plus NMMA sell labels to boat manufacturers.
      https://www.nmma.org/certification/products/safety-information-labels

      you have to buy them at least 100 at a time from NMMA

      If you are an individual, you might find a boat manufacturer using a label like you are interested in and be able to purchase one from them.

      Is not really practical for you to try to print on on your computer because it needs to resist sunlight, water (including the glue/ sticky stuff), fuel, abrasion, etc. Plus some labels are specified by NMMA & ABYC to be a certified vessel. Plus you dont want to be messing with what your boat manufacturer designed for your boat.

      gary
