Mercury patented outboard motor tether in 1969
Mercury’s efforts preceded The Leash by nearly 50 years.
This post is best viewed on a laptop or desktop computer.
This post in no way belittles the development of or the accomplishments of The Leash, it just points out the basics of the concept have been around a long time. It also points out that one outboard manufacturer not only condoned the use of tethers, they factory installed them on tens of thousands of motors.
Back on January 12, 1967, Brunswick Corporation filed two patent applications that were later issued as the patents listed below:
- U.S. Patent 3,434,448 Combined Impact Damping and Power Lift Mechanism for an Outboard Propulsion Unit Assembly invented by W.L. Woodfill issued 25 March 1969, assigned to Brunswick Corporation (parent company of Mercury Marine).
- U.S. Patent 3,434,450 Mounting Arrangement for Hydraulic Impact Damping and Power Lift Means for an Outboard Propulsion Unit invented by well known Mercury engineer, D.F. (Dan) McCormick issued 25 March 1969, assigned to Brunswick Corporation (parent company of Mercury Marine).
The first patent teaches how to combine the damping needed to stop an outboard motor swinging up after striking a submerged object, with the power lift system as seen on the “Tower of Power”, the tall large horsepower Mercury outboards.
The second patent focuses more on the mounting arrangement used to accomplish the first patent.
We do find it a bit odd these two relatively complex patents list two separate inventors vs. listing them as co-inventors on each patent. They even share the same drawings. The first patent focuses more on the tether and specifically includes it as a claim in the patent.
Mercury’s tether is a heavy nylon strap about 1.75 inches wide and about one to two feet long (they come in different lengths depending on the outboard model and model year).
The tethers have a loop on both ends allowing them to be slipped over a metal rod.
In operation on the tower of power outboards, one looped end of the tether slips onto a rod on the swivel bracket (note a tube allowing the tether to swivel more easily is slipped over the rod first, then the looped end of the tether is slipped over the tube). The strap then loops around a metal bar on the outboard mounting bracket structure that is firmly attached to the transom, then the remaining looped end slides over the same rod on the swivel bracket that the first loop slipped on. See photos near the bottom of this post for how Mercury’s tether is assembled. The swivel bracket is tethered to the transom, just like The Leash.
The tilt cylinder(s) use external relief valves and check valves to allow the cylinder rod to collapse during collision with a submerged object which allows the swivel bracket to swing up with the rest of the outboard.
Brunswick’s U.S. Patent 3,434,448
We marked up the first page of U.S. Patent 3,434,448 below:
We combined some of the remaining sections of the patent below:Mercury called their tether a tilt stop strap and continued to show their use in parts books printed up to as late as 2009. In the image to left, #44 is the Tilt Stop Strap (tether), #45 is the rod on the swivel bracket, #46 is the mounting tube (slips over a rod on the swivel bracket), and #47 is a cotter pin. The cotter pin and a washer are used to keep the loops of the tether from sliding off the tube on the rod on the swivel bracket. Mercury shows the installation up close in their Mercury Outboard 1966 thru 1975 service manual, 90-68647 pdf page 425.
References indicate Mercury was forced to use the tether because too many outboard motors were breaking off. Once Mercury was able to reduce those numbers, they ceased use of the tilt stop straps. New Tilt Stop Straps can still be purchased from several suppliers, plus used Tilt Stop Straps are on the market as well. See the iboats forum discussion below.
The essence of the iBoat forum discussion is told online in several places.
We have seen references of Mercury Marine’s tethers being used on 40 to 140 horsepower outboards.
Mercury Tether Photos

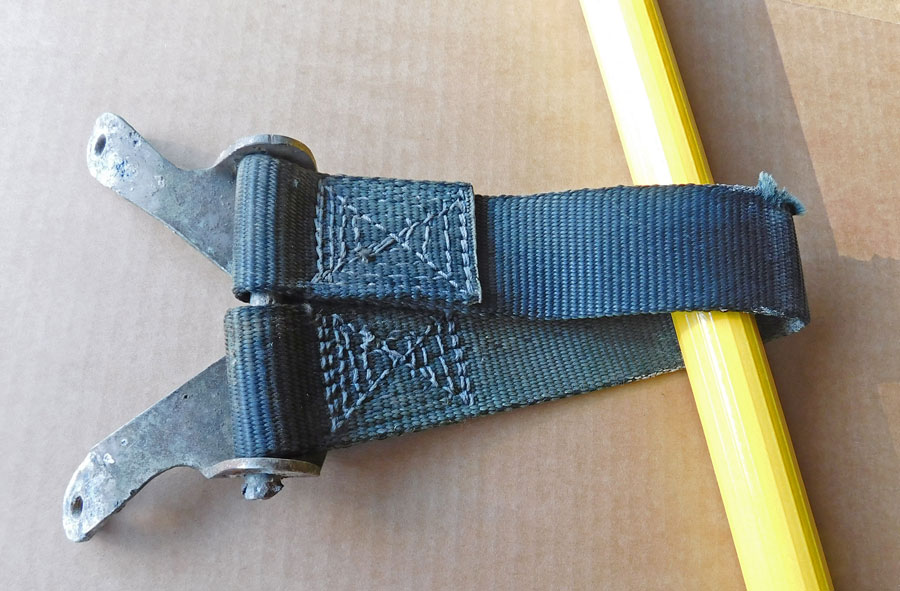

Below is a series of images of a Mercury outboard tether removed from a Mercury 1150 outboard (a Tower of Power 115 horsepower Mercury outboard).
Mercury’s tethers were used in a number of configurations, but they always had their end loops tied to the swivel bracket while the middle of the strap passed over a part of the transom structure mounting the outboard to the boat.
In this instance no roller is present over the rod. It may have been lost through time. The small rod has cotter pin holes in both ends of it so a washer could be trapped against the end of the bracket to prevent if from sliding off either end.
The view above is of the other side of the mounting structure that bolts to the swivel bracket.
Above, the parts are disassembled to form an exploded view.
Above, a closeup of the mounting arrangement shows how the loops at the end of the strap attach to the rod.

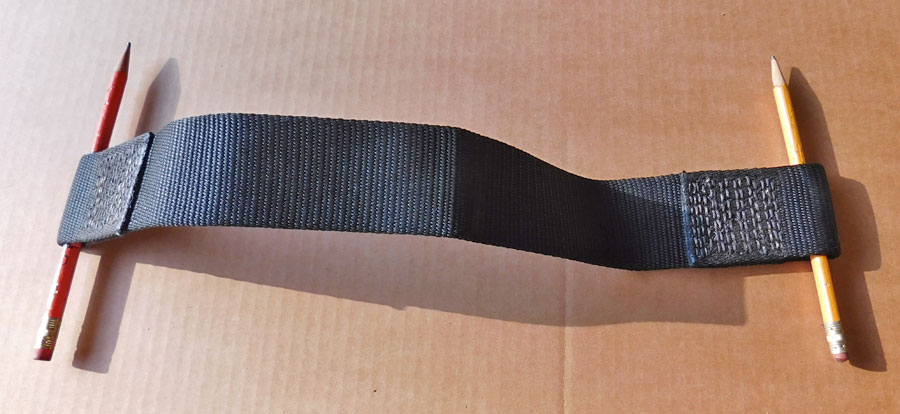

Mercury Marine’s tethers are still available in a variety of part numbers and lengths for many of their previous installations, as seen in the photo of a new Mercury Marine tilt stop strap (tether) above.
History Repeats Itself
Well there you have it. Mercury started using tethers to restrain large outboard motors about 50 years ago, then quit using them when outboards became more durable and failures decreased. Over time, outboard motors became larger, heavier, and much faster and the problem reared its ugly head again. This time a third party, The Leash, sprang into action with an updated, high tech version the long forgotten cure. Just like the earlier version, The Leash goes around something tied to the swivel bracket and slides over something bolted to the transom. History repeats itself, repeats itself, …
